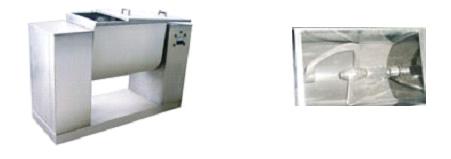

CH系列槽型混合机

文章出处:恒海干燥发表时间:2014/8/13 15:23:20

概述   Description

        用于混合粉状或湿性物料,使不同比例主辅料混合均匀。本机与物料接触处均采用不锈钢制造,浆叶与桶身间隙小,混合无死角,搅拌轴两端设有密封装置,能防止物料外泻,料斗采用按钮点动控制,出料方便。广泛适用于制药、化工、食品等行业。

CH series slot shaped mixer is widely used for mixing powder or wet materials, and can make the materials in different proportions mixed uniformly. The parts of the machine which contact with materials are made of stainless steel. The gap between blades and the inner wall of the cylinder is very small, so there's no"dead corner" in mixing. Seal devices are fixed on both ends of the stirring shaft to prevent the materials from rushing out. Feed hopper is controlled through buttons. So it's very convenient to feed or discharge materials. This type of mixer is widely used in pharmaceutical, chemical, foodstuff industry and so on.

----------------------------------------------------------------------------------------------------------------

技术参数   Technical parameters



型号 Type

容量 Volume
(L)

电机功率 motor power (kw)

外形尺寸
Overall dimension
(mm)

搅拌转速 stirring speed (rpm)

倒料角度 inclined angle (。)

重量 weight (kg)

100

100

2.2

1400×580×1000

24

105

400

150

150

3

1600×600×1050

24

105

500

200

200

4

1870×650×1065

24

105

650
