YPG系列压力式喷雾造粒干燥机
概述 Description
本机是将料液压入位于塔体顶部的喷嘴雾化成微小雾滴，同塔顶热风平行而下完成干燥。该机具有收尘率高，无粘壁、节能高效等特点，特别适用于热敏性物料干燥。广泛应用于食品染料、中间体等行业。
The material is sprayed into exiguity fog by nozzle on the top of tower. Follow the heat wind, the material is dried. The machine's characteristic is high collect drit, no past, economizing energy, high effect, and wide used in food, dyestuff, chemical industry and so on.
----------------------------------------------------------------------------------------------------------------

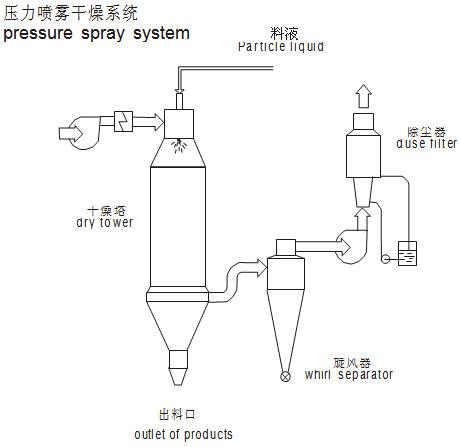

工艺流程 Technological proccess
----------------------------------------------------------------------------------------------------------------
技术参数 Technical parameters
| 型号Type | 50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 水份蒸发量 Water evaporation capacity kg/g |
50 | 100 | 150 | 200 | 300 | 500 | 1000 |
| 外形尺寸 Overall dimension (φ×H) mm |
1600×890 | 2000×11500 | 2400×13500 | 2800×14800 | 3200×15400 | 3800×18800 | 4600×22500 |
| 高压泵压力 High-pressure pump pressure Mpa |
2-10 | ||||||
| 功率 Power KW |
8.5 | 14 | 22 | 24 | 30 | 45 | 75 |
| 进风温度 Inlet air temperature ℃ |
300-350 | ||||||
| 产品含水量 Product water contents % |
＜5(可达0.5) Less than 5; and 0.5 can be reached | ||||||
| 物料回收 Material restoration % |
＞97 | ||||||
| 电加热 Electric heating Kw |
75 | 120 | 150 | 温度低于200时，具体按实际计算。 When the temperature is lower than 200, the parameters should be calculated according to the practical condition. |
|||
| 电加蒸汽 Electrically producing steam Mpa+kw |
0.5+54 | 0.6+90 | 0.6+108 | ||||
| 热风炉 Hot air furnace Kcal/h |
100000 | 150000 | 200000 | 300000 | 400000 | 500000 | 1200000 |
----------------------------------------------------------------------------------------------------------------
应用 Application
本机主要适用于医药、食品、化工等行业进行粉末或颗粒物料的干燥。
◎ 食品工业：全脂奶粉、胳朊、可可奶粉、代乳粉、蛋青(黄)等。燕麦、鸡汁、咖啡、速溶茶、调味香料肉、蛋白质 、大豆、花生、蛋白质、蛋白质水解物等。玉米浆、玉米淀粉、葡萄糖、果胶、麦芽糖、山梨酸钾、南瓜粉等。
◎ 医药品：中药浸膏、药胶、酵母、维生素、抗生素、淀粉酶、脂肪酶等。
◎ 塑料树脂：AB、ABS乳液、尿醛树脂、酚醛树脂、密胶(脲)甲醛树脂、聚乙烯、聚氯乙烯等。
◎ 洗涤剂：高级洗衣粉、普通洗衣粉、肥皂粉、苏打粉、乳化剂、增白剂、磷酸剂等。
◎ 化学工业：氟化钠(钾)、碱性染料颜料、染料中间体、Mn3O4、 甲荃硅酸、催化剂、硫酸剂、氨基酸、白炭黑等。
◎ 陶瓷：氧化铝、瓷砖材料、氧化镁、滑石等。
◎ 其它：氢氧化铝、氯化钙、硬脂酸剂等冷却喷雾。
◎ Food Industry: fatty milk powder, protein, cocoa milk powder, substitute milk powder, egg white(yolk), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth. Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
◎ Medicine: Traditional Chinese medicine extract, ointment, yeast, vitamin, antibiotic, amylase, lipase and etc.
◎ Plastics and resin: AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chlor- oprene and etc.
◎ Detergent: Common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid and etc.
◎ Chemical Industry: Sodium fluoride(potassium), alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
◎ Ceramic: aluminium oxide, ceramic tile material, magnesium oxide, talcum and so on.
◎ Other: Calmogastrin, hime chloride, stearic acid agent and the cooling spray.
