YZG/FZG系列真空干燥机
原理 Principle
所谓真空干燥，就是将干燥物料处在真空条件下，进行加热干燥，如果利用真空泵进行抽气抽湿，则加快了干燥速率。
注：如采用冷凝器，物料中的溶剂可通过冷凝器加以回收；如采用SK系列水环真空泵，可不用冷凝器，节省能源投资。
It is well known that vacuum drying is to put raw material under the state of vacuum for heating and drying. If use vacuum to pump air and humidity out, the dry speed will be faster.
Note: if use condenser, the solvent in raw material can be recovered. If apply SK series water ring vacuum pump, condenser might be canceled and the investment and every could be saved.
-----------------------------------------------------------------------------------------------------------------

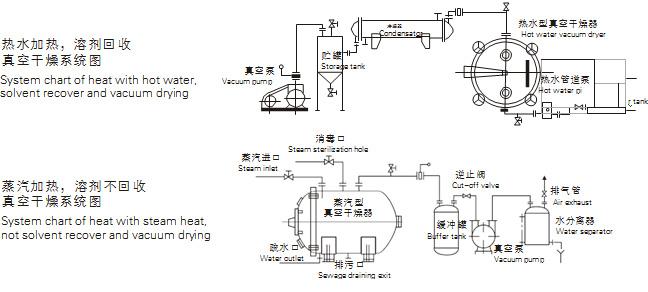

流程图 Flow chart
-----------------------------------------------------------------------------------------------------------------
应用 Application
适用于在高温下易分解，聚合和变质的热敏性物料的低温干燥；被广泛地采用在 制药、化工、食品、电子等行业。
It is suitable for drying heat sensitive raw materials that can decompose or polymerize or deteriorate at high temperature. It is widely used in pharmaceutical, chemical, foodstuff and electronic industries.
-----------------------------------------------------------------------------------------------------------------
特点 Featrures
◎ 真空下物料溶液的沸点降低，使蒸发器的传热推动力增大，因此对一定的传热量可以节省蒸发器的传热面积。
◎ 蒸发操作的热源可采用低压蒸汽或废热蒸汽。
◎ 蒸发器热损失少。
◎ 在干燥前可进行消毒处理，干燥过程中无任何不纯物混入，符合GMP要求。
◎ 属于静态真空干燥器，故干燥物料的形体不会损坏。
◎ Under the condition of vacuum, the boiling point of raw material will decrease and make the evaporation efficiency higher. Therefore for a certain amount of heat transfer, the conducting area of dryer can be saved.
◎ The heat source for evaporation may be low pressure steam or surplus heat steam.
◎ The heat loss is less.
◎ Before drying, the treatment of disinfection may be carried out. During the period of drying, there is no impurity material mixed. It is in conformity with the requirement of GMP.
◎ It belongs to static dryer. So the shape of raw material to be dried should not be destroyed.
-----------------------------------------------------------------------------------------------------------------

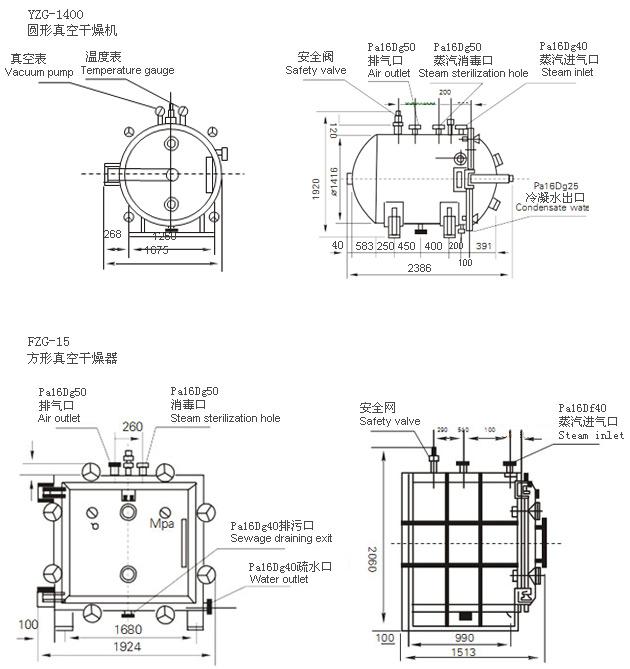

技术参数 Technical parameters
| YZG-600 | YZG-800 | YZG-1000 | YZG-1400A | FZG-10 | FZG-15 | FZG-20 | |
| 干燥箱内尺寸 | Φ 600×976 | Φ 800×1247 | Φ 1000×1527 | Φ 1400×2054 | 1500× 1060×1220 |
1500× 1400×1220 |
1500 ×1800×1220 |
| 干燥箱外尺寸 | 1135× 810×1020 |
1700× 1045×1335 |
1693× 1190×1500 |
2380× 1675×1920 |
1924× 1720×2060 |
1513× 1924×2060 |
1924× 2500×1513 |
| 烘架层数 | 4 | 4 | 6 | 8 | 5 | 8 | 12 |
| 层间距离 | 81 | 82 | 102 | 102 | 122 | 122 | 122 |
| 烘盘尺寸 | 310×600×45 | 520×410×45 | 520×410×45 | 460×640×45 | 460×640×45 | 460×640×45 | 460×640×45 |
| 烘盘数 | 4 | 8 | 12 | 32 | 20 | 32 | 48 |
| 烘架管内使压 | ≤0.748 | ≤0.748 | ≤0.748 | ≤0.748 | ≤0.748 | ≤0.748 | ≤0.748 |
| 烘架使用温度 | 35～150 | 35～150 | 35～150 | 35～150 | 35～150 | 35～150 | 35～150 |
| 箱内空载真空度 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 | -0.1 |
| 在-0.1MPa，加热温度110℃时，水的汽化率 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 | 7.2 |
| 用冷凝器时，真空泵型号，功率 |
2X-15A 2KW |
2X-30 3KW |
2X-30A 3KW |
2X-70A 5.5KW |
2X-70A 5.5KW |
2X-70A 5.5KW |
2X-90A 2KW |
| 不用冷凝器时，真空泵型号，功率 |
SZ-0.5 1.5KW |
SZ-1 2.2KW |
SZ-1 2.2KW |
SZ-1 2.2KW |
SZ-2 4KW |
SZ-2 4KW |
SZ-2 5.5KW |
| 干燥箱重量 | 250 | 600 | 800 | 1400 | 1400 | 2100 | 3200 |
-----------------------------------------------------------------------------------------------------------------
